ets_sys.h 文件参考

#include "c_types.h"
#include "eagle_soc.h"

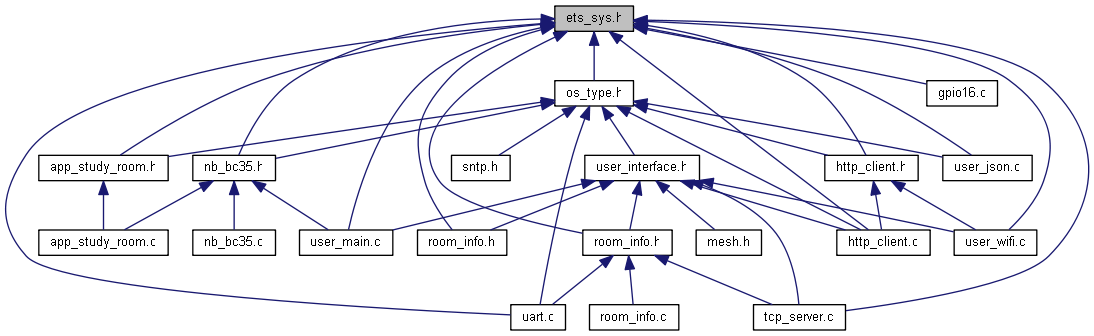

ets_sys.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	ETSEventTag
struct	_ETSTIMER_

宏定义
#define	ETS_SDIO_INUM   1
#define	ETS_SPI_INUM   2
#define	ETS_GPIO_INUM   4
#define	ETS_UART_INUM   5
#define	ETS_UART1_INUM   5
#define	ETS_FRC_TIMER1_INUM   9 /* use edge*/
#define	ETS_INTR_LOCK()   ets_intr_lock()
#define	ETS_INTR_UNLOCK()   ets_intr_unlock()
#define	ETS_FRC_TIMER1_INTR_ATTACH(func, arg)   ets_isr_attach(ETS_FRC_TIMER1_INUM, (func), (void *)(arg))
#define	ETS_FRC_TIMER1_NMI_INTR_ATTACH(func)   NmiTimSetFunc(func)
#define	ETS_SDIO_INTR_ATTACH(func, arg)   ets_isr_attach(ETS_SDIO_INUM, (func), (void *)(arg))
#define	ETS_GPIO_INTR_ATTACH(func, arg)   ets_isr_attach(ETS_GPIO_INUM, (func), (void *)(arg))
#define	ETS_UART_INTR_ATTACH(func, arg)   ets_isr_attach(ETS_UART_INUM, (func), (void *)(arg))
#define	ETS_SPI_INTR_ATTACH(func, arg)   ets_isr_attach(ETS_SPI_INUM, (func), (void *)(arg))
#define	ETS_INTR_ENABLE(inum)   ets_isr_unmask((1<<inum))
#define	ETS_INTR_DISABLE(inum)   ets_isr_mask((1<<inum))
#define	ETS_UART_INTR_ENABLE()   ETS_INTR_ENABLE(ETS_UART_INUM)
#define	ETS_UART_INTR_DISABLE()   ETS_INTR_DISABLE(ETS_UART_INUM)
#define	ETS_FRC1_INTR_ENABLE()   ETS_INTR_ENABLE(ETS_FRC_TIMER1_INUM)
#define	ETS_FRC1_INTR_DISABLE()   ETS_INTR_DISABLE(ETS_FRC_TIMER1_INUM)
#define	ETS_GPIO_INTR_ENABLE()   ETS_INTR_ENABLE(ETS_GPIO_INUM)
#define	ETS_GPIO_INTR_DISABLE()   ETS_INTR_DISABLE(ETS_GPIO_INUM)
#define	ETS_SPI_INTR_ENABLE()   ETS_INTR_ENABLE(ETS_SPI_INUM)
#define	ETS_SPI_INTR_DISABLE()   ETS_INTR_DISABLE(ETS_SPI_INUM)
#define	ETS_SDIO_INTR_ENABLE()   ETS_INTR_ENABLE(ETS_SDIO_INUM)
#define	ETS_SDIO_INTR_DISABLE()   ETS_INTR_DISABLE(ETS_SDIO_INUM)

类型定义
typedef uint32_t	ETSSignal
typedef uint32_t	ETSParam
typedef struct ETSEventTag	ETSEvent
typedef void(*	ETSTask )(ETSEvent *e)
typedef uint32_t	ETSHandle
typedef void	ETSTimerFunc (void *timer_arg)
typedef struct _ETSTIMER_	ETSTimer

宏定义说明

#define ETS_SDIO_INUM   1

#define ETS_SPI_INUM   2

#define ETS_GPIO_INUM   4

#define ETS_UART_INUM   5

#define ETS_UART1_INUM   5

#define ETS_FRC_TIMER1_INUM   9 /* use edge*/

#define ETS_INTR_LOCK

(

)

ets_intr_lock()

#define ETS_INTR_UNLOCK

(

)

ets_intr_unlock()

#define ETS_FRC_TIMER1_INTR_ATTACH	(		func,
			arg
	)		ets_isr_attach(ETS_FRC_TIMER1_INUM, (func), (void *)(arg))

#define ETS_FRC_TIMER1_NMI_INTR_ATTACH

(

func

)

NmiTimSetFunc(func)

#define ETS_SDIO_INTR_ATTACH	(		func,
			arg
	)		ets_isr_attach(ETS_SDIO_INUM, (func), (void *)(arg))

#define ETS_GPIO_INTR_ATTACH	(		func,
			arg
	)		ets_isr_attach(ETS_GPIO_INUM, (func), (void *)(arg))

#define ETS_UART_INTR_ATTACH	(		func,
			arg
	)		ets_isr_attach(ETS_UART_INUM, (func), (void *)(arg))

#define ETS_SPI_INTR_ATTACH	(		func,
			arg
	)		ets_isr_attach(ETS_SPI_INUM, (func), (void *)(arg))

#define ETS_INTR_ENABLE

(

inum

)

ets_isr_unmask((1<<inum))

#define ETS_INTR_DISABLE

(

inum

)

ets_isr_mask((1<<inum))

#define ETS_UART_INTR_ENABLE

(

)

ETS_INTR_ENABLE(ETS_UART_INUM)

#define ETS_UART_INTR_DISABLE

(

)

ETS_INTR_DISABLE(ETS_UART_INUM)

#define ETS_FRC1_INTR_ENABLE

(

)

ETS_INTR_ENABLE(ETS_FRC_TIMER1_INUM)

#define ETS_FRC1_INTR_DISABLE

(

)

ETS_INTR_DISABLE(ETS_FRC_TIMER1_INUM)

#define ETS_GPIO_INTR_ENABLE

(

)

ETS_INTR_ENABLE(ETS_GPIO_INUM)

#define ETS_GPIO_INTR_DISABLE

(

)

ETS_INTR_DISABLE(ETS_GPIO_INUM)

#define ETS_SPI_INTR_ENABLE

(

)

ETS_INTR_ENABLE(ETS_SPI_INUM)

#define ETS_SPI_INTR_DISABLE

(

)

ETS_INTR_DISABLE(ETS_SPI_INUM)

#define ETS_SDIO_INTR_ENABLE

(

)

ETS_INTR_ENABLE(ETS_SDIO_INUM)

#define ETS_SDIO_INTR_DISABLE

(

)

ETS_INTR_DISABLE(ETS_SDIO_INUM)

类型定义说明

typedef uint32_t ETSSignal

typedef uint32_t ETSParam

typedef struct ETSEventTag ETSEvent

typedef void(* ETSTask)(ETSEvent *e)

typedef uint32_t ETSHandle

typedef void ETSTimerFunc(void *timer_arg)

typedef struct _ETSTIMER_ ETSTimer
