user_interface.h 文件参考
#include "os_type.h"
#include "ip_addr.h"
#include "queue.h"
#include "user_config.h"
#include "spi_flash.h"
#include "gpio.h"

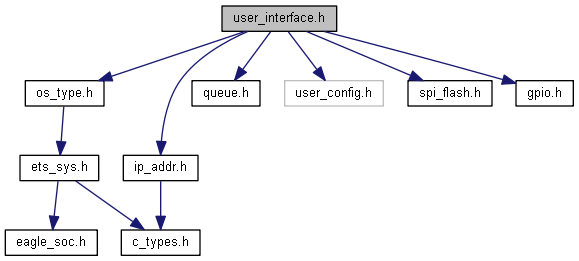

user_interface.h 的引用(Include)关系图:

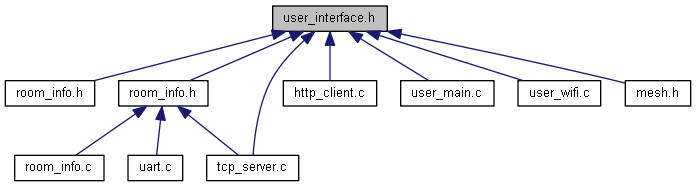

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体

struct  rst_info

struct  bss_info

struct  _scaninfo

struct  station_config

struct  scan_config

struct  softap_config

struct  station_info

struct  dhcps_lease

struct  Event_StaMode_Connected_t

struct  Event_StaMode_Disconnected_t

struct  Event_StaMode_AuthMode_Change_t

struct  Event_StaMode_Got_IP_t

struct  Event_SoftAPMode_StaConnected_t

struct  Event_SoftAPMode_StaDisconnected_t

struct  Event_SoftAPMode_ProbeReqRecved_t

union  Event_Info_u

struct  _esp_event


宏定义

#define MAC2STR(a)   (a)[0], (a)[1], (a)[2], (a)[3], (a)[4], (a)[5]

#define MACSTR   "%02x:%02x:%02x:%02x:%02x:%02x"

#define UPGRADE_FW_BIN1   0x00

#define UPGRADE_FW_BIN2   0x01

#define SYS_BOOT_ENHANCE_MODE   0

#define SYS_BOOT_NORMAL_MODE   1

#define SYS_BOOT_NORMAL_BIN   0

#define SYS_BOOT_TEST_BIN   1

#define SYS_CPU_80MHZ   80

#define SYS_CPU_160MHZ   160

#define NULL_MODE   0x00

#define STATION_MODE   0x01

#define SOFTAP_MODE   0x02

#define STATIONAP_MODE   0x03

#define STATION_IF   0x00

#define SOFTAP_IF   0x01

#define ESP_U32_DIFF(a, b)   (((a) >= (b)) ? ((a) - (b)) : (((a) + ((b) ^ 0xFFFFFFFF) + 1)))

#define FIXED_RATE_MASK_NONE   0x00

#define FIXED_RATE_MASK_STA   0x01

#define FIXED_RATE_MASK_AP   0x02

#define FIXED_RATE_MASK_ALL   0x03

#define RC_LIMIT_11B   0

#define RC_LIMIT_11G   1

#define RC_LIMIT_11N   2

#define RC_LIMIT_P2P_11G   3

#define RC_LIMIT_P2P_11N   4

#define RC_LIMIT_NUM   5

#define LIMIT_RATE_MASK_NONE   0x00

#define LIMIT_RATE_MASK_STA   0x01

#define LIMIT_RATE_MASK_AP   0x02

#define LIMIT_RATE_MASK_ALL   0x03


类型定义

typedef void(* init_done_cb_t )(void)

typedef enum _auth_mode AUTH_MODE

typedef struct _scaninfo scaninfo

typedef void(* scan_done_cb_t )(void *arg, STATUS status)

typedef void(* wifi_promiscuous_cb_t )(uint8 *buf, uint16 len)

typedef void(* fpm_wakeup_cb )(void)

typedef struct _esp_event System_Event_t

typedef void(* wifi_event_handler_cb_t )(System_Event_t *event)

typedef enum wps_type WPS_TYPE_t

typedef void(* wps_st_cb_t )(int status)

typedef void(* freedom_outside_cb_t )(uint8 status)

typedef void(* rfid_locp_cb_t )(uint8 *frm, int len, int rssi)

typedef void(* user_ie_manufacturer_recv_cb_t )(uint8 type, const uint8 sa[6], const uint8 m_oui[3], uint8 *ie, uint8 ie_len, int rssi)


枚举

enum  rst_reason {
  REASON_DEFAULT_RST = 0, REASON_WDT_RST = 1, REASON_EXCEPTION_RST = 2, REASON_SOFT_WDT_RST = 3,
  REASON_SOFT_RESTART = 4, REASON_DEEP_SLEEP_AWAKE = 5, REASON_EXT_SYS_RST = 6
}

enum  { USER_TASK_PRIO_0 = 0, USER_TASK_PRIO_1, USER_TASK_PRIO_2, USER_TASK_PRIO_MAX }

enum  flash_size_map {
  FLASH_SIZE_4M_MAP_256_256 = 0, FLASH_SIZE_2M, FLASH_SIZE_8M_MAP_512_512, FLASH_SIZE_16M_MAP_512_512,
  FLASH_SIZE_32M_MAP_512_512, FLASH_SIZE_16M_MAP_1024_1024, FLASH_SIZE_32M_MAP_1024_1024
}

enum  _auth_mode {
  AUTH_OPEN = 0, AUTH_WEP, AUTH_WPA_PSK, AUTH_WPA2_PSK,
  AUTH_WPA_WPA2_PSK, AUTH_MAX
}

enum  {
  STATION_IDLE = 0, STATION_CONNECTING, STATION_WRONG_PASSWORD, STATION_NO_AP_FOUND,
  STATION_CONNECT_FAIL, STATION_GOT_IP
}

enum  dhcp_status { DHCP_STOPPED, DHCP_STARTED }

enum  dhcps_offer_option { OFFER_START = 0x00, OFFER_ROUTER = 0x01, OFFER_END }

enum  phy_mode { PHY_MODE_11B = 1, PHY_MODE_11G = 2, PHY_MODE_11N = 3 }

enum  sleep_type { NONE_SLEEP_T = 0, LIGHT_SLEEP_T, MODEM_SLEEP_T }

enum  {
  EVENT_STAMODE_CONNECTED = 0, EVENT_STAMODE_DISCONNECTED, EVENT_STAMODE_AUTHMODE_CHANGE, EVENT_STAMODE_GOT_IP,
  EVENT_STAMODE_DHCP_TIMEOUT, EVENT_SOFTAPMODE_STACONNECTED, EVENT_SOFTAPMODE_STADISCONNECTED, EVENT_SOFTAPMODE_PROBEREQRECVED,
  EVENT_MAX
}

enum  {
  REASON_UNSPECIFIED = 1, REASON_AUTH_EXPIRE = 2, REASON_AUTH_LEAVE = 3, REASON_ASSOC_EXPIRE = 4,
  REASON_ASSOC_TOOMANY = 5, REASON_NOT_AUTHED = 6, REASON_NOT_ASSOCED = 7, REASON_ASSOC_LEAVE = 8,
  REASON_ASSOC_NOT_AUTHED = 9, REASON_DISASSOC_PWRCAP_BAD = 10, REASON_DISASSOC_SUPCHAN_BAD = 11, REASON_IE_INVALID = 13,
  REASON_MIC_FAILURE = 14, REASON_4WAY_HANDSHAKE_TIMEOUT = 15, REASON_GROUP_KEY_UPDATE_TIMEOUT = 16, REASON_IE_IN_4WAY_DIFFERS = 17,
  REASON_GROUP_CIPHER_INVALID = 18, REASON_PAIRWISE_CIPHER_INVALID = 19, REASON_AKMP_INVALID = 20, REASON_UNSUPP_RSN_IE_VERSION = 21,
  REASON_INVALID_RSN_IE_CAP = 22, REASON_802_1X_AUTH_FAILED = 23, REASON_CIPHER_SUITE_REJECTED = 24, REASON_BEACON_TIMEOUT = 200,
  REASON_NO_AP_FOUND = 201, REASON_AUTH_FAIL = 202, REASON_ASSOC_FAIL = 203, REASON_HANDSHAKE_TIMEOUT = 204
}

enum  wps_type {
  WPS_TYPE_DISABLE = 0, WPS_TYPE_PBC, WPS_TYPE_PIN, WPS_TYPE_DISPLAY,
  WPS_TYPE_MAX
}

enum  wps_cb_status { WPS_CB_ST_SUCCESS = 0, WPS_CB_ST_FAILED, WPS_CB_ST_TIMEOUT, WPS_CB_ST_WEP }

enum  FIXED_RATE {
  PHY_RATE_48 = 0x8, PHY_RATE_24 = 0x9, PHY_RATE_12 = 0xA, PHY_RATE_6 = 0xB,
  PHY_RATE_54 = 0xC, PHY_RATE_36 = 0xD, PHY_RATE_18 = 0xE, PHY_RATE_9 = 0xF
}

enum  support_rate {
  RATE_11B5M = 0, RATE_11B11M = 1, RATE_11B1M = 2, RATE_11B2M = 3,
  RATE_11G6M = 4, RATE_11G12M = 5, RATE_11G24M = 6, RATE_11G48M = 7,
  RATE_11G54M = 8, RATE_11G9M = 9, RATE_11G18M = 10, RATE_11G36M = 11
}

enum  RATE_11B_ID { RATE_11B_B11M = 0, RATE_11B_B5M = 1, RATE_11B_B2M = 2, RATE_11B_B1M = 3 }

enum  RATE_11G_ID {
  RATE_11G_G54M = 0, RATE_11G_G48M = 1, RATE_11G_G36M = 2, RATE_11G_G24M = 3,
  RATE_11G_G18M = 4, RATE_11G_G12M = 5, RATE_11G_G9M = 6, RATE_11G_G6M = 7,
  RATE_11G_B5M = 8, RATE_11G_B2M = 9, RATE_11G_B1M = 10
}

enum  RATE_11N_ID {
  RATE_11N_MCS7S = 0, RATE_11N_MCS7 = 1, RATE_11N_MCS6 = 2, RATE_11N_MCS5 = 3,
  RATE_11N_MCS4 = 4, RATE_11N_MCS3 = 5, RATE_11N_MCS2 = 6, RATE_11N_MCS1 = 7,
  RATE_11N_MCS0 = 8, RATE_11N_B5M = 9, RATE_11N_B2M = 10, RATE_11N_B1M = 11
}

enum  {
  USER_IE_BEACON = 0, USER_IE_PROBE_REQ, USER_IE_PROBE_RESP, USER_IE_ASSOC_REQ,
  USER_IE_ASSOC_RESP, USER_IE_MAX
}


函数

struct rst_info * system_get_rst_info (void)

void system_restore (void)

void system_restart (void)

bool system_deep_sleep_set_option (uint8 option)

void system_deep_sleep (uint32 time_in_us)

uint8 system_upgrade_userbin_check (void)

void system_upgrade_reboot (void)

uint8 system_upgrade_flag_check ()

void system_upgrade_flag_set (uint8 flag)

void system_timer_reinit (void)

uint32 system_get_time (void)

bool system_os_task (os_task_t task, uint8 prio, os_event_t *queue, uint8 qlen)

bool system_os_post (uint8 prio, os_signal_t sig, os_param_t par)

void system_print_meminfo (void)

uint32 system_get_free_heap_size (void)

void system_set_os_print (uint8 onoff)

uint8 system_get_os_print ()

uint64 system_mktime (uint32 year, uint32 mon, uint32 day, uint32 hour, uint32 min, uint32 sec)

uint32 system_get_chip_id (void)

void system_init_done_cb (init_done_cb_t cb)

uint32 system_rtc_clock_cali_proc (void)

uint32 system_get_rtc_time (void)

bool system_rtc_mem_read (uint8 src_addr, void *des_addr, uint16 load_size)

bool system_rtc_mem_write (uint8 des_addr, const void *src_addr, uint16 save_size)

void system_uart_swap (void)

void system_uart_de_swap (void)

uint16 system_adc_read (void)

void system_adc_read_fast (uint16 *adc_addr, uint16 adc_num, uint8 adc_clk_div)

uint16 system_get_vdd33 (void)

const char * system_get_sdk_version (void)

uint8 system_get_boot_version (void)

uint32 system_get_userbin_addr (void)

uint8 system_get_boot_mode (void)

bool system_restart_enhance (uint8 bin_type, uint32 bin_addr)

bool system_update_cpu_freq (uint8 freq)

uint8 system_get_cpu_freq (void)

enum flash_size_map system_get_flash_size_map (void)

void system_phy_set_max_tpw (uint8 max_tpw)

void system_phy_set_tpw_via_vdd33 (uint16 vdd33)

void system_phy_set_rfoption (uint8 option)

void system_phy_set_powerup_option (uint8 option)

bool system_param_save_with_protect (uint16 start_sec, void *param, uint16 len)

bool system_param_load (uint16 start_sec, uint16 offset, void *param, uint16 len)

void system_soft_wdt_stop (void)

void system_soft_wdt_restart (void)

void system_soft_wdt_feed (void)

void system_show_malloc (void)

uint8 wifi_get_opmode (void)

uint8 wifi_get_opmode_default (void)

bool wifi_set_opmode (uint8 opmode)

bool wifi_set_opmode_current (uint8 opmode)

uint8 wifi_get_broadcast_if (void)

bool wifi_set_broadcast_if (uint8 interface)

bool wifi_station_get_config (struct station_config *config)

bool wifi_station_get_config_default (struct station_config *config)

bool wifi_station_set_config (struct station_config *config)

bool wifi_station_set_config_current (struct station_config *config)

bool wifi_station_connect (void)

bool wifi_station_disconnect (void)

sint8 wifi_station_get_rssi (void)

bool wifi_station_scan (struct scan_config *config, scan_done_cb_t cb)

uint8 wifi_station_get_auto_connect (void)

bool wifi_station_set_auto_connect (uint8 set)

bool wifi_station_set_reconnect_policy (bool set)

uint8 wifi_station_get_connect_status (void)

uint8 wifi_station_get_current_ap_id (void)

bool wifi_station_ap_change (uint8 current_ap_id)

bool wifi_station_ap_number_set (uint8 ap_number)

uint8 wifi_station_get_ap_info (struct station_config config[])

bool wifi_station_dhcpc_start (void)

bool wifi_station_dhcpc_stop (void)

enum dhcp_status wifi_station_dhcpc_status (void)

bool wifi_station_dhcpc_set_maxtry (uint8 num)

char * wifi_station_get_hostname (void)

bool wifi_station_set_hostname (char *name)

int wifi_station_set_cert_key (uint8 *client_cert, int client_cert_len, uint8 *private_key, int private_key_len, uint8 *private_key_passwd, int private_key_passwd_len)

void wifi_station_clear_cert_key (void)

int wifi_station_set_username (uint8 *username, int len)

void wifi_station_clear_username (void)

bool wifi_softap_get_config (struct softap_config *config)

bool wifi_softap_get_config_default (struct softap_config *config)

bool wifi_softap_set_config (struct softap_config *config)

bool wifi_softap_set_config_current (struct softap_config *config)

uint8 wifi_softap_get_station_num (void)

struct station_info * wifi_softap_get_station_info (void)

void wifi_softap_free_station_info (void)

bool wifi_softap_dhcps_start (void)

bool wifi_softap_dhcps_stop (void)

bool wifi_softap_set_dhcps_lease (struct dhcps_lease *please)

bool wifi_softap_get_dhcps_lease (struct dhcps_lease *please)

uint32 wifi_softap_get_dhcps_lease_time (void)

bool wifi_softap_set_dhcps_lease_time (uint32 minute)

bool wifi_softap_reset_dhcps_lease_time (void)

enum dhcp_status wifi_softap_dhcps_status (void)

bool wifi_softap_set_dhcps_offer_option (uint8 level, void *optarg)

bool wifi_get_ip_info (uint8 if_index, struct ip_info *info)

bool wifi_set_ip_info (uint8 if_index, struct ip_info *info)

bool wifi_get_macaddr (uint8 if_index, uint8 *macaddr)

bool wifi_set_macaddr (uint8 if_index, uint8 *macaddr)

uint8 wifi_get_channel (void)

bool wifi_set_channel (uint8 channel)

void wifi_status_led_install (uint8 gpio_id, uint32 gpio_name, uint8 gpio_func)

void wifi_status_led_uninstall ()

void wifi_promiscuous_enable (uint8 promiscuous)

void wifi_set_promiscuous_rx_cb (wifi_promiscuous_cb_t cb)

void wifi_promiscuous_set_mac (const uint8_t *address)

enum phy_mode wifi_get_phy_mode (void)

bool wifi_set_phy_mode (enum phy_mode mode)

bool wifi_set_sleep_type (enum sleep_type type)

enum sleep_type wifi_get_sleep_type (void)

void wifi_fpm_open (void)

void wifi_fpm_close (void)

void wifi_fpm_do_wakeup (void)

sint8 wifi_fpm_do_sleep (uint32 sleep_time_in_us)

void wifi_fpm_set_sleep_type (enum sleep_type type)

enum sleep_type wifi_fpm_get_sleep_type (void)

void wifi_fpm_set_wakeup_cb (fpm_wakeup_cb cb)

void wifi_fpm_auto_sleep_set_in_null_mode (uint8 req)

void wifi_set_event_handler_cb (wifi_event_handler_cb_t cb)

bool wifi_wps_enable (WPS_TYPE_t wps_type)

bool wifi_wps_disable (void)

bool wifi_wps_start (void)

bool wifi_set_wps_cb (wps_st_cb_t cb)

int wifi_register_send_pkt_freedom_cb (freedom_outside_cb_t cb)

void wifi_unregister_send_pkt_freedom_cb (void)

int wifi_send_pkt_freedom (uint8 *buf, int len, bool sys_seq)

int wifi_rfid_locp_recv_open (void)

void wifi_rfid_locp_recv_close (void)

int wifi_register_rfid_locp_recv_cb (rfid_locp_cb_t cb)

void wifi_unregister_rfid_locp_recv_cb (void)

int wifi_set_user_fixed_rate (uint8 enable_mask, uint8 rate)

int wifi_get_user_fixed_rate (uint8 *enable_mask, uint8 *rate)

int wifi_set_user_sup_rate (uint8 min, uint8 max)

bool wifi_set_user_rate_limit (uint8 mode, uint8 ifidx, uint8 max, uint8 min)

uint8 wifi_get_user_limit_rate_mask (void)

bool wifi_set_user_limit_rate_mask (uint8 enable_mask)

bool wifi_set_user_ie (bool enable, uint8 *m_oui, uint8 type, uint8 *user_ie, uint8 len)

int wifi_register_user_ie_manufacturer_recv_cb (user_ie_manufacturer_recv_cb_t cb)

void wifi_unregister_user_ie_manufacturer_recv_cb (void)

void wifi_enable_gpio_wakeup (uint32 i, GPIO_INT_TYPE intr_status)

void wifi_disable_gpio_wakeup (void)


宏定义说明

#define MAC2STR (   a)    (a)[0], (a)[1], (a)[2], (a)[3], (a)[4], (a)[5]
#define MACSTR   "%02x:%02x:%02x:%02x:%02x:%02x"
#define UPGRADE_FW_BIN1   0x00
#define UPGRADE_FW_BIN2   0x01
#define SYS_BOOT_ENHANCE_MODE   0
#define SYS_BOOT_NORMAL_MODE   1
#define SYS_BOOT_NORMAL_BIN   0
#define SYS_BOOT_TEST_BIN   1
#define SYS_CPU_80MHZ   80
#define SYS_CPU_160MHZ   160
#define NULL_MODE   0x00
#define STATION_MODE   0x01
#define SOFTAP_MODE   0x02
#define STATIONAP_MODE   0x03
#define STATION_IF   0x00
#define SOFTAP_IF   0x01
#define ESP_U32_DIFF (   a,
  b
)    (((a) >= (b)) ? ((a) - (b)) : (((a) + ((b) ^ 0xFFFFFFFF) + 1)))

Get the absolute difference between 2 u32_t values (correcting overflows) 'a' is expected to be 'higher' (without overflow) than 'b'.

#define FIXED_RATE_MASK_NONE   0x00
#define FIXED_RATE_MASK_STA   0x01
#define FIXED_RATE_MASK_AP   0x02
#define FIXED_RATE_MASK_ALL   0x03
#define RC_LIMIT_11B   0
#define RC_LIMIT_11G   1
#define RC_LIMIT_11N   2
#define RC_LIMIT_P2P_11G   3
#define RC_LIMIT_P2P_11N   4
#define RC_LIMIT_NUM   5
#define LIMIT_RATE_MASK_NONE   0x00
#define LIMIT_RATE_MASK_STA   0x01
#define LIMIT_RATE_MASK_AP   0x02
#define LIMIT_RATE_MASK_ALL   0x03

类型定义说明

typedef void(* init_done_cb_t)(void)
typedef enum _auth_mode AUTH_MODE
typedef struct _scaninfo scaninfo
typedef void(* scan_done_cb_t)(void *arg, STATUS status)
typedef void(* wifi_promiscuous_cb_t)(uint8 *buf, uint16 len)
typedef void(* fpm_wakeup_cb)(void)
typedef struct _esp_event System_Event_t
typedef void(* wifi_event_handler_cb_t)(System_Event_t *event)
typedef enum wps_type WPS_TYPE_t
typedef void(* wps_st_cb_t)(int status)
typedef void(* freedom_outside_cb_t)(uint8 status)
typedef void(* rfid_locp_cb_t)(uint8 *frm, int len, int rssi)
typedef void(* user_ie_manufacturer_recv_cb_t)(uint8 type, const uint8 sa[6], const uint8 m_oui[3], uint8 *ie, uint8 ie_len, int rssi)

枚举类型说明

enum rst_reason
枚举值
REASON_DEFAULT_RST
REASON_WDT_RST
REASON_EXCEPTION_RST
REASON_SOFT_WDT_RST
REASON_SOFT_RESTART
REASON_DEEP_SLEEP_AWAKE
REASON_EXT_SYS_RST
45  {
46  REASON_DEFAULT_RST = 0,
47  REASON_WDT_RST = 1,
48  REASON_EXCEPTION_RST = 2,
49  REASON_SOFT_WDT_RST = 3,
50  REASON_SOFT_RESTART = 4,
51  REASON_DEEP_SLEEP_AWAKE = 5,
52  REASON_EXT_SYS_RST = 6
53 };
REASON_WDT_RST
Definition: user_interface.h:47
REASON_DEFAULT_RST
Definition: user_interface.h:46
REASON_DEEP_SLEEP_AWAKE
Definition: user_interface.h:51
REASON_EXT_SYS_RST
Definition: user_interface.h:52
REASON_EXCEPTION_RST
Definition: user_interface.h:48
REASON_SOFT_WDT_RST
Definition: user_interface.h:49
REASON_SOFT_RESTART
Definition: user_interface.h:50
anonymous enum
枚举值
USER_TASK_PRIO_0
USER_TASK_PRIO_1
USER_TASK_PRIO_2
USER_TASK_PRIO_MAX
85  {
86  USER_TASK_PRIO_0 = 0,
87  USER_TASK_PRIO_1,
88  USER_TASK_PRIO_2,
89  USER_TASK_PRIO_MAX
90 };
USER_TASK_PRIO_MAX
Definition: user_interface.h:89
USER_TASK_PRIO_0
Definition: user_interface.h:86
USER_TASK_PRIO_2
Definition: user_interface.h:88
USER_TASK_PRIO_1
Definition: user_interface.h:87
enum flash_size_map
枚举值
FLASH_SIZE_4M_MAP_256_256
FLASH_SIZE_2M
FLASH_SIZE_8M_MAP_512_512
FLASH_SIZE_16M_MAP_512_512
FLASH_SIZE_32M_MAP_512_512
FLASH_SIZE_16M_MAP_1024_1024
FLASH_SIZE_32M_MAP_1024_1024
141  {
142  FLASH_SIZE_4M_MAP_256_256 = 0,
143  FLASH_SIZE_2M,
144  FLASH_SIZE_8M_MAP_512_512,
145  FLASH_SIZE_16M_MAP_512_512,
146  FLASH_SIZE_32M_MAP_512_512,
147  FLASH_SIZE_16M_MAP_1024_1024,
148  FLASH_SIZE_32M_MAP_1024_1024
149 };
FLASH_SIZE_32M_MAP_1024_1024
Definition: user_interface.h:148
FLASH_SIZE_32M_MAP_512_512
Definition: user_interface.h:146
FLASH_SIZE_16M_MAP_1024_1024
Definition: user_interface.h:147
FLASH_SIZE_4M_MAP_256_256
Definition: user_interface.h:142
FLASH_SIZE_16M_MAP_512_512
Definition: user_interface.h:145
FLASH_SIZE_8M_MAP_512_512
Definition: user_interface.h:144
FLASH_SIZE_2M
Definition: user_interface.h:143
enum _auth_mode
枚举值
AUTH_OPEN
AUTH_WEP
AUTH_WPA_PSK
AUTH_WPA2_PSK
AUTH_WPA_WPA2_PSK
AUTH_MAX
172  {
173  AUTH_OPEN = 0,
174  AUTH_WEP,
175  AUTH_WPA_PSK,
176  AUTH_WPA2_PSK,
177  AUTH_WPA_WPA2_PSK,
178  AUTH_MAX
179 } AUTH_MODE;
AUTH_OPEN
Definition: user_interface.h:173
AUTH_WPA_WPA2_PSK
Definition: user_interface.h:177
AUTH_MAX
Definition: user_interface.h:178
AUTH_WEP
Definition: user_interface.h:174
AUTH_WPA_PSK
Definition: user_interface.h:175
AUTH_WPA2_PSK
Definition: user_interface.h:176
AUTH_MODE
enum _auth_mode AUTH_MODE
anonymous enum
枚举值
STATION_IDLE
STATION_CONNECTING
STATION_WRONG_PASSWORD
STATION_NO_AP_FOUND
STATION_CONNECT_FAIL
STATION_GOT_IP
247  {
248  STATION_IDLE = 0,
249  STATION_CONNECTING,
250  STATION_WRONG_PASSWORD,
251  STATION_NO_AP_FOUND,
252  STATION_CONNECT_FAIL,
253  STATION_GOT_IP
254 };
STATION_WRONG_PASSWORD
Definition: user_interface.h:250
STATION_IDLE
Definition: user_interface.h:248
STATION_CONNECT_FAIL
Definition: user_interface.h:252
STATION_GOT_IP
Definition: user_interface.h:253
STATION_NO_AP_FOUND
Definition: user_interface.h:251
STATION_CONNECTING
Definition: user_interface.h:249
enum dhcp_status
枚举值
DHCP_STOPPED
DHCP_STARTED
256  {
257  DHCP_STOPPED,
258  DHCP_STARTED
259 };
DHCP_STOPPED
Definition: user_interface.h:257
DHCP_STARTED
Definition: user_interface.h:258
enum dhcps_offer_option
枚举值
OFFER_START
OFFER_ROUTER
OFFER_END
312  {
313  OFFER_START = 0x00,
314  OFFER_ROUTER = 0x01,
315  OFFER_END
316 };
OFFER_END
Definition: user_interface.h:315
OFFER_START
Definition: user_interface.h:313
OFFER_ROUTER
Definition: user_interface.h:314
enum phy_mode
枚举值
PHY_MODE_11B
PHY_MODE_11G
PHY_MODE_11N
360  {
361  PHY_MODE_11B = 1,
362  PHY_MODE_11G = 2,
363  PHY_MODE_11N = 3
364 };
PHY_MODE_11G
Definition: user_interface.h:362
PHY_MODE_11B
Definition: user_interface.h:361
PHY_MODE_11N
Definition: user_interface.h:363
enum sleep_type
枚举值
NONE_SLEEP_T
LIGHT_SLEEP_T
MODEM_SLEEP_T
369  {
370  NONE_SLEEP_T = 0,
371  LIGHT_SLEEP_T,
372  MODEM_SLEEP_T
373 };
MODEM_SLEEP_T
Definition: user_interface.h:372
LIGHT_SLEEP_T
Definition: user_interface.h:371
NONE_SLEEP_T
Definition: user_interface.h:370
anonymous enum
枚举值
EVENT_STAMODE_CONNECTED
EVENT_STAMODE_DISCONNECTED
EVENT_STAMODE_AUTHMODE_CHANGE
EVENT_STAMODE_GOT_IP
EVENT_STAMODE_DHCP_TIMEOUT
EVENT_SOFTAPMODE_STACONNECTED
EVENT_SOFTAPMODE_STADISCONNECTED
EVENT_SOFTAPMODE_PROBEREQRECVED
EVENT_MAX
390  {
391  EVENT_STAMODE_CONNECTED = 0,
392  EVENT_STAMODE_DISCONNECTED,
393  EVENT_STAMODE_AUTHMODE_CHANGE,
394  EVENT_STAMODE_GOT_IP,
395  EVENT_STAMODE_DHCP_TIMEOUT,
396  EVENT_SOFTAPMODE_STACONNECTED,
397  EVENT_SOFTAPMODE_STADISCONNECTED,
398  EVENT_SOFTAPMODE_PROBEREQRECVED,
399  EVENT_MAX
400 };
EVENT_STAMODE_DISCONNECTED
Definition: user_interface.h:392
EVENT_SOFTAPMODE_PROBEREQRECVED
Definition: user_interface.h:398
EVENT_MAX
Definition: user_interface.h:399
EVENT_STAMODE_DHCP_TIMEOUT
Definition: user_interface.h:395
EVENT_STAMODE_CONNECTED
Definition: user_interface.h:391
EVENT_STAMODE_GOT_IP
Definition: user_interface.h:394
EVENT_SOFTAPMODE_STADISCONNECTED
Definition: user_interface.h:397
EVENT_STAMODE_AUTHMODE_CHANGE
Definition: user_interface.h:393
EVENT_SOFTAPMODE_STACONNECTED
Definition: user_interface.h:396
anonymous enum
枚举值
REASON_UNSPECIFIED
REASON_AUTH_EXPIRE
REASON_AUTH_LEAVE
REASON_ASSOC_EXPIRE
REASON_ASSOC_TOOMANY
REASON_NOT_AUTHED
REASON_NOT_ASSOCED
REASON_ASSOC_LEAVE
REASON_ASSOC_NOT_AUTHED
REASON_DISASSOC_PWRCAP_BAD
REASON_DISASSOC_SUPCHAN_BAD
REASON_IE_INVALID
REASON_MIC_FAILURE
REASON_4WAY_HANDSHAKE_TIMEOUT
REASON_GROUP_KEY_UPDATE_TIMEOUT
REASON_IE_IN_4WAY_DIFFERS
REASON_GROUP_CIPHER_INVALID
REASON_PAIRWISE_CIPHER_INVALID
REASON_AKMP_INVALID
REASON_UNSUPP_RSN_IE_VERSION
REASON_INVALID_RSN_IE_CAP
REASON_802_1X_AUTH_FAILED
REASON_CIPHER_SUITE_REJECTED
REASON_BEACON_TIMEOUT
REASON_NO_AP_FOUND
REASON_AUTH_FAIL
REASON_ASSOC_FAIL
REASON_HANDSHAKE_TIMEOUT
402  {
403  REASON_UNSPECIFIED = 1,
404  REASON_AUTH_EXPIRE = 2,
405  REASON_AUTH_LEAVE = 3,
406  REASON_ASSOC_EXPIRE = 4,
407  REASON_ASSOC_TOOMANY = 5,
408  REASON_NOT_AUTHED = 6,
409  REASON_NOT_ASSOCED = 7,
410  REASON_ASSOC_LEAVE = 8,
411  REASON_ASSOC_NOT_AUTHED = 9,
412  REASON_DISASSOC_PWRCAP_BAD = 10, /* 11h */
413  REASON_DISASSOC_SUPCHAN_BAD = 11, /* 11h */
414  REASON_IE_INVALID = 13, /* 11i */
415  REASON_MIC_FAILURE = 14, /* 11i */
416  REASON_4WAY_HANDSHAKE_TIMEOUT = 15, /* 11i */
417  REASON_GROUP_KEY_UPDATE_TIMEOUT = 16, /* 11i */
418  REASON_IE_IN_4WAY_DIFFERS = 17, /* 11i */
419  REASON_GROUP_CIPHER_INVALID = 18, /* 11i */
420  REASON_PAIRWISE_CIPHER_INVALID = 19, /* 11i */
421  REASON_AKMP_INVALID = 20, /* 11i */
422  REASON_UNSUPP_RSN_IE_VERSION = 21, /* 11i */
423  REASON_INVALID_RSN_IE_CAP = 22, /* 11i */
424  REASON_802_1X_AUTH_FAILED = 23, /* 11i */
425  REASON_CIPHER_SUITE_REJECTED = 24, /* 11i */
426
427  REASON_BEACON_TIMEOUT = 200,
428  REASON_NO_AP_FOUND = 201,
429  REASON_AUTH_FAIL = 202,
430  REASON_ASSOC_FAIL = 203,
431  REASON_HANDSHAKE_TIMEOUT = 204,
432 };
REASON_DISASSOC_PWRCAP_BAD
Definition: user_interface.h:412
REASON_IE_IN_4WAY_DIFFERS
Definition: user_interface.h:418
REASON_NO_AP_FOUND
Definition: user_interface.h:428
REASON_ASSOC_EXPIRE
Definition: user_interface.h:406
REASON_IE_INVALID
Definition: user_interface.h:414
REASON_UNSUPP_RSN_IE_VERSION
Definition: user_interface.h:422
REASON_802_1X_AUTH_FAILED
Definition: user_interface.h:424
REASON_DISASSOC_SUPCHAN_BAD
Definition: user_interface.h:413
REASON_GROUP_CIPHER_INVALID
Definition: user_interface.h:419
REASON_AUTH_LEAVE
Definition: user_interface.h:405
REASON_AKMP_INVALID
Definition: user_interface.h:421
REASON_NOT_AUTHED
Definition: user_interface.h:408
REASON_HANDSHAKE_TIMEOUT
Definition: user_interface.h:431
REASON_AUTH_EXPIRE
Definition: user_interface.h:404
REASON_PAIRWISE_CIPHER_INVALID
Definition: user_interface.h:420
REASON_GROUP_KEY_UPDATE_TIMEOUT
Definition: user_interface.h:417
REASON_4WAY_HANDSHAKE_TIMEOUT
Definition: user_interface.h:416
REASON_ASSOC_NOT_AUTHED
Definition: user_interface.h:411
REASON_UNSPECIFIED
Definition: user_interface.h:403
REASON_INVALID_RSN_IE_CAP
Definition: user_interface.h:423
REASON_ASSOC_TOOMANY
Definition: user_interface.h:407
REASON_ASSOC_LEAVE
Definition: user_interface.h:410
REASON_NOT_ASSOCED
Definition: user_interface.h:409
REASON_ASSOC_FAIL
Definition: user_interface.h:430
REASON_CIPHER_SUITE_REJECTED
Definition: user_interface.h:425
REASON_AUTH_FAIL
Definition: user_interface.h:429
REASON_MIC_FAILURE
Definition: user_interface.h:415
REASON_BEACON_TIMEOUT
Definition: user_interface.h:427
enum wps_type
枚举值
WPS_TYPE_DISABLE
WPS_TYPE_PBC
WPS_TYPE_PIN
WPS_TYPE_DISPLAY
WPS_TYPE_MAX
493  {
494  WPS_TYPE_DISABLE = 0,
495  WPS_TYPE_PBC,
496  WPS_TYPE_PIN,
497  WPS_TYPE_DISPLAY,
498  WPS_TYPE_MAX,
499 } WPS_TYPE_t;
WPS_TYPE_PIN
Definition: user_interface.h:496
WPS_TYPE_t
enum wps_type WPS_TYPE_t
WPS_TYPE_PBC
Definition: user_interface.h:495
WPS_TYPE_MAX
Definition: user_interface.h:498
WPS_TYPE_DISPLAY
Definition: user_interface.h:497
WPS_TYPE_DISABLE
Definition: user_interface.h:494
enum wps_cb_status
枚举值
WPS_CB_ST_SUCCESS
WPS_CB_ST_FAILED
WPS_CB_ST_TIMEOUT
WPS_CB_ST_WEP
501  {
502  WPS_CB_ST_SUCCESS = 0,
503  WPS_CB_ST_FAILED,
504  WPS_CB_ST_TIMEOUT,
505  WPS_CB_ST_WEP,
506 };
WPS_CB_ST_TIMEOUT
Definition: user_interface.h:504
WPS_CB_ST_SUCCESS
Definition: user_interface.h:502
WPS_CB_ST_FAILED
Definition: user_interface.h:503
WPS_CB_ST_WEP
Definition: user_interface.h:505
enum FIXED_RATE
枚举值
PHY_RATE_48
PHY_RATE_24
PHY_RATE_12
PHY_RATE_6
PHY_RATE_54
PHY_RATE_36
PHY_RATE_18
PHY_RATE_9
527  {
528  PHY_RATE_48 = 0x8,
529  PHY_RATE_24 = 0x9,
530  PHY_RATE_12 = 0xA,
531  PHY_RATE_6 = 0xB,
532  PHY_RATE_54 = 0xC,
533  PHY_RATE_36 = 0xD,
534  PHY_RATE_18 = 0xE,
535  PHY_RATE_9 = 0xF,
536 };
PHY_RATE_9
Definition: user_interface.h:535
PHY_RATE_54
Definition: user_interface.h:532
PHY_RATE_36
Definition: user_interface.h:533
PHY_RATE_18
Definition: user_interface.h:534
PHY_RATE_6
Definition: user_interface.h:531
PHY_RATE_24
Definition: user_interface.h:529
PHY_RATE_48
Definition: user_interface.h:528
PHY_RATE_12
Definition: user_interface.h:530
enum support_rate
枚举值
RATE_11B5M
RATE_11B11M
RATE_11B1M
RATE_11B2M
RATE_11G6M
RATE_11G12M
RATE_11G24M
RATE_11G48M
RATE_11G54M
RATE_11G9M
RATE_11G18M
RATE_11G36M
546  {
547  RATE_11B5M = 0,
548  RATE_11B11M = 1,
549  RATE_11B1M = 2,
550  RATE_11B2M = 3,
551  RATE_11G6M = 4,
552  RATE_11G12M = 5,
553  RATE_11G24M = 6,
554  RATE_11G48M = 7,
555  RATE_11G54M = 8,
556  RATE_11G9M = 9,
557  RATE_11G18M = 10,
558  RATE_11G36M = 11,
559 };
RATE_11G36M
Definition: user_interface.h:558
RATE_11B2M
Definition: user_interface.h:550
RATE_11B1M
Definition: user_interface.h:549
RATE_11B5M
Definition: user_interface.h:547
RATE_11G6M
Definition: user_interface.h:551
RATE_11B11M
Definition: user_interface.h:548
RATE_11G12M
Definition: user_interface.h:552
RATE_11G18M
Definition: user_interface.h:557
RATE_11G24M
Definition: user_interface.h:553
RATE_11G54M
Definition: user_interface.h:555
RATE_11G48M
Definition: user_interface.h:554
RATE_11G9M
Definition: user_interface.h:556
enum RATE_11B_ID
枚举值
RATE_11B_B11M
RATE_11B_B5M
RATE_11B_B2M
RATE_11B_B1M
563  {
564  RATE_11B_B11M = 0,
565  RATE_11B_B5M = 1,
566  RATE_11B_B2M = 2,
567  RATE_11B_B1M = 3,
568 };
RATE_11B_B2M
Definition: user_interface.h:566
RATE_11B_B1M
Definition: user_interface.h:567
RATE_11B_B11M
Definition: user_interface.h:564
RATE_11B_B5M
Definition: user_interface.h:565
enum RATE_11G_ID
枚举值
RATE_11G_G54M
RATE_11G_G48M
RATE_11G_G36M
RATE_11G_G24M
RATE_11G_G18M
RATE_11G_G12M
RATE_11G_G9M
RATE_11G_G6M
RATE_11G_B5M
RATE_11G_B2M
RATE_11G_B1M
570  {
571  RATE_11G_G54M = 0,
572  RATE_11G_G48M = 1,
573  RATE_11G_G36M = 2,
574  RATE_11G_G24M = 3,
575  RATE_11G_G18M = 4,
576  RATE_11G_G12M = 5,
577  RATE_11G_G9M = 6,
578  RATE_11G_G6M = 7,
579  RATE_11G_B5M = 8,
580  RATE_11G_B2M = 9,
581  RATE_11G_B1M = 10
582 };
RATE_11G_G36M
Definition: user_interface.h:573
RATE_11G_G48M
Definition: user_interface.h:572
RATE_11G_B1M
Definition: user_interface.h:581
RATE_11G_G6M
Definition: user_interface.h:578
RATE_11G_B2M
Definition: user_interface.h:580
RATE_11G_G54M
Definition: user_interface.h:571
RATE_11G_G12M
Definition: user_interface.h:576
RATE_11G_G9M
Definition: user_interface.h:577
RATE_11G_G18M
Definition: user_interface.h:575
RATE_11G_G24M
Definition: user_interface.h:574
RATE_11G_B5M
Definition: user_interface.h:579
enum RATE_11N_ID
枚举值
RATE_11N_MCS7S
RATE_11N_MCS7
RATE_11N_MCS6
RATE_11N_MCS5
RATE_11N_MCS4
RATE_11N_MCS3
RATE_11N_MCS2
RATE_11N_MCS1
RATE_11N_MCS0
RATE_11N_B5M
RATE_11N_B2M
RATE_11N_B1M
584  {
585  RATE_11N_MCS7S = 0,
586  RATE_11N_MCS7 = 1,
587  RATE_11N_MCS6 = 2,
588  RATE_11N_MCS5 = 3,
589  RATE_11N_MCS4 = 4,
590  RATE_11N_MCS3 = 5,
591  RATE_11N_MCS2 = 6,
592  RATE_11N_MCS1 = 7,
593  RATE_11N_MCS0 = 8,
594  RATE_11N_B5M = 9,
595  RATE_11N_B2M = 10,
596  RATE_11N_B1M = 11
597 };
RATE_11N_MCS7S
Definition: user_interface.h:585
RATE_11N_MCS3
Definition: user_interface.h:590
RATE_11N_MCS6
Definition: user_interface.h:587
RATE_11N_MCS1
Definition: user_interface.h:592
RATE_11N_B1M
Definition: user_interface.h:596
RATE_11N_B5M
Definition: user_interface.h:594
RATE_11N_MCS2
Definition: user_interface.h:591
RATE_11N_MCS0
Definition: user_interface.h:593
RATE_11N_B2M
Definition: user_interface.h:595
RATE_11N_MCS5
Definition: user_interface.h:588
RATE_11N_MCS7
Definition: user_interface.h:586
RATE_11N_MCS4
Definition: user_interface.h:589
anonymous enum
枚举值
USER_IE_BEACON
USER_IE_PROBE_REQ
USER_IE_PROBE_RESP
USER_IE_ASSOC_REQ
USER_IE_ASSOC_RESP
USER_IE_MAX
615  {
616  USER_IE_BEACON = 0,
617  USER_IE_PROBE_REQ,
618  USER_IE_PROBE_RESP,
619  USER_IE_ASSOC_REQ,
620  USER_IE_ASSOC_RESP,
621  USER_IE_MAX
622 };
USER_IE_BEACON
Definition: user_interface.h:616
USER_IE_MAX
Definition: user_interface.h:621
USER_IE_PROBE_RESP
Definition: user_interface.h:618
USER_IE_ASSOC_RESP
Definition: user_interface.h:620
USER_IE_PROBE_REQ
Definition: user_interface.h:617
USER_IE_ASSOC_REQ
Definition: user_interface.h:619

函数说明

struct rst_info* system_get_rst_info ( void  )
void system_restore ( void  )
void system_restart ( void  )
bool system_deep_sleep_set_option ( uint8  option)
void system_deep_sleep ( uint32  time_in_us)
uint8 system_upgrade_userbin_check ( void  )
void system_upgrade_reboot ( void  )
uint8 system_upgrade_flag_check ( )
void system_upgrade_flag_set ( uint8  flag)
void system_timer_reinit ( void  )
uint32 system_get_time ( void  )

这是这个函数的调用关系图:

bool system_os_task ( os_task_t  task,
uint8  prio,
os_event_t *  queue,
uint8  qlen
)

这是这个函数的调用关系图:

bool system_os_post ( uint8  prio,
os_signal_t  sig,
os_param_t  par
)

这是这个函数的调用关系图:

void system_print_meminfo ( void  )
uint32 system_get_free_heap_size ( void  )
void system_set_os_print ( uint8  onoff)
uint8 system_get_os_print ( )
uint64 system_mktime ( uint32  year,
uint32  mon,
uint32  day,
uint32  hour,
uint32  min,
uint32  sec
)
uint32 system_get_chip_id ( void  )
void system_init_done_cb ( init_done_cb_t  cb)

这是这个函数的调用关系图:

uint32 system_rtc_clock_cali_proc ( void  )
uint32 system_get_rtc_time ( void  )
bool system_rtc_mem_read ( uint8  src_addr,
void *  des_addr,
uint16  load_size
)
bool system_rtc_mem_write ( uint8  des_addr,
const void *  src_addr,
uint16  save_size
)
void system_uart_swap ( void  )
void system_uart_de_swap ( void  )

这是这个函数的调用关系图:

uint16 system_adc_read ( void  )

这是这个函数的调用关系图:

void system_adc_read_fast ( uint16 *  adc_addr,
uint16  adc_num,
uint8  adc_clk_div
)
uint16 system_get_vdd33 ( void  )
const char* system_get_sdk_version ( void  )
uint8 system_get_boot_version ( void  )
uint32 system_get_userbin_addr ( void  )
uint8 system_get_boot_mode ( void  )
bool system_restart_enhance ( uint8  bin_type,
uint32  bin_addr
)
bool system_update_cpu_freq ( uint8  freq)
uint8 system_get_cpu_freq ( void  )
enum flash_size_map system_get_flash_size_map ( void  )

这是这个函数的调用关系图:

void system_phy_set_max_tpw ( uint8  max_tpw)
void system_phy_set_tpw_via_vdd33 ( uint16  vdd33)
void system_phy_set_rfoption ( uint8  option)
void system_phy_set_powerup_option ( uint8  option)
bool system_param_save_with_protect ( uint16  start_sec,
void *  param,
uint16  len
)
bool system_param_load ( uint16  start_sec,
uint16  offset,
void *  param,
uint16  len
)
void system_soft_wdt_stop ( void  )
void system_soft_wdt_restart ( void  )
void system_soft_wdt_feed ( void  )
void system_show_malloc ( void  )
uint8 wifi_get_opmode ( void  )
uint8 wifi_get_opmode_default ( void  )
bool wifi_set_opmode ( uint8  opmode)

这是这个函数的调用关系图:

bool wifi_set_opmode_current ( uint8  opmode)
uint8 wifi_get_broadcast_if ( void  )
bool wifi_set_broadcast_if ( uint8  interface)
bool wifi_station_get_config ( struct station_config *  config)
bool wifi_station_get_config_default ( struct station_config *  config)
bool wifi_station_set_config ( struct station_config *  config)

这是这个函数的调用关系图:

bool wifi_station_set_config_current ( struct station_config *  config)
bool wifi_station_connect ( void  )
bool wifi_station_disconnect ( void  )
sint8 wifi_station_get_rssi ( void  )
bool wifi_station_scan ( struct scan_config *  config,
scan_done_cb_t  cb
)
uint8 wifi_station_get_auto_connect ( void  )
bool wifi_station_set_auto_connect ( uint8  set)
bool wifi_station_set_reconnect_policy ( bool  set)
uint8 wifi_station_get_connect_status ( void  )
uint8 wifi_station_get_current_ap_id ( void  )
bool wifi_station_ap_change ( uint8  current_ap_id)
bool wifi_station_ap_number_set ( uint8  ap_number)
uint8 wifi_station_get_ap_info ( struct station_config  config[])
bool wifi_station_dhcpc_start ( void  )
bool wifi_station_dhcpc_stop ( void  )
enum dhcp_status wifi_station_dhcpc_status ( void  )
bool wifi_station_dhcpc_set_maxtry ( uint8  num)
char* wifi_station_get_hostname ( void  )
bool wifi_station_set_hostname ( char *  name)
int wifi_station_set_cert_key ( uint8 *  client_cert,
int  client_cert_len,
uint8 *  private_key,
int  private_key_len,
uint8 *  private_key_passwd,
int  private_key_passwd_len
)
void wifi_station_clear_cert_key ( void  )
int wifi_station_set_username ( uint8 *  username,
int  len
)
void wifi_station_clear_username ( void  )
bool wifi_softap_get_config ( struct softap_config *  config)
bool wifi_softap_get_config_default ( struct softap_config *  config)
bool wifi_softap_set_config ( struct softap_config *  config)

这是这个函数的调用关系图:

bool wifi_softap_set_config_current ( struct softap_config *  config)
uint8 wifi_softap_get_station_num ( void  )
struct station_info* wifi_softap_get_station_info ( void  )
void wifi_softap_free_station_info ( void  )
bool wifi_softap_dhcps_start ( void  )

这是这个函数的调用关系图:

bool wifi_softap_dhcps_stop ( void  )

这是这个函数的调用关系图:

bool wifi_softap_set_dhcps_lease ( struct dhcps_lease *  please)

这是这个函数的调用关系图:

bool wifi_softap_get_dhcps_lease ( struct dhcps_lease *  please)
uint32 wifi_softap_get_dhcps_lease_time ( void  )
bool wifi_softap_set_dhcps_lease_time ( uint32  minute)
bool wifi_softap_reset_dhcps_lease_time ( void  )
enum dhcp_status wifi_softap_dhcps_status ( void  )
bool wifi_softap_set_dhcps_offer_option ( uint8  level,
void *  optarg
)
bool wifi_get_ip_info ( uint8  if_index,
struct ip_info *  info
)
bool wifi_set_ip_info ( uint8  if_index,
struct ip_info *  info
)
bool wifi_get_macaddr ( uint8  if_index,
uint8 *  macaddr
)
bool wifi_set_macaddr ( uint8  if_index,
uint8 *  macaddr
)
uint8 wifi_get_channel ( void  )
bool wifi_set_channel ( uint8  channel)
void wifi_status_led_install ( uint8  gpio_id,
uint32  gpio_name,
uint8  gpio_func
)
void wifi_status_led_uninstall ( )
void wifi_promiscuous_enable ( uint8  promiscuous)
void wifi_set_promiscuous_rx_cb ( wifi_promiscuous_cb_t  cb)
void wifi_promiscuous_set_mac ( const uint8_t *  address)
enum phy_mode wifi_get_phy_mode ( void  )
bool wifi_set_phy_mode ( enum phy_mode  mode)
bool wifi_set_sleep_type ( enum sleep_type  type)
enum sleep_type wifi_get_sleep_type ( void  )
void wifi_fpm_open ( void  )
void wifi_fpm_close ( void  )
void wifi_fpm_do_wakeup ( void  )
sint8 wifi_fpm_do_sleep ( uint32  sleep_time_in_us)
void wifi_fpm_set_sleep_type ( enum sleep_type  type)
enum sleep_type wifi_fpm_get_sleep_type ( void  )
void wifi_fpm_set_wakeup_cb ( fpm_wakeup_cb  cb)
void wifi_fpm_auto_sleep_set_in_null_mode ( uint8  req)
void wifi_set_event_handler_cb ( wifi_event_handler_cb_t  cb)

这是这个函数的调用关系图:

bool wifi_wps_enable ( WPS_TYPE_t  wps_type)
bool wifi_wps_disable ( void  )
bool wifi_wps_start ( void  )
bool wifi_set_wps_cb ( wps_st_cb_t  cb)
int wifi_register_send_pkt_freedom_cb ( freedom_outside_cb_t  cb)
void wifi_unregister_send_pkt_freedom_cb ( void  )
int wifi_send_pkt_freedom ( uint8 *  buf,
int  len,
bool  sys_seq
)
int wifi_rfid_locp_recv_open ( void  )
void wifi_rfid_locp_recv_close ( void  )
int wifi_register_rfid_locp_recv_cb ( rfid_locp_cb_t  cb)
void wifi_unregister_rfid_locp_recv_cb ( void  )
int wifi_set_user_fixed_rate ( uint8  enable_mask,
uint8  rate
)
int wifi_get_user_fixed_rate ( uint8 *  enable_mask,
uint8 *  rate
)
int wifi_set_user_sup_rate ( uint8  min,
uint8  max
)
bool wifi_set_user_rate_limit ( uint8  mode,
uint8  ifidx,
uint8  max,
uint8  min
)
uint8 wifi_get_user_limit_rate_mask ( void  )
bool wifi_set_user_limit_rate_mask ( uint8  enable_mask)
bool wifi_set_user_ie ( bool  enable,
uint8 *  m_oui,
uint8  type,
uint8 *  user_ie,
uint8  len
)
int wifi_register_user_ie_manufacturer_recv_cb ( user_ie_manufacturer_recv_cb_t  cb)
void wifi_unregister_user_ie_manufacturer_recv_cb ( void  )
void wifi_enable_gpio_wakeup ( uint32  i,
GPIO_INT_TYPE  intr_status
)
void wifi_disable_gpio_wakeup ( void  )
生成于 2020年 二月 22日 星期六 16:45:18 , 为 ESP8266 Centre + NB使用   doxygen 1.8.6
