user_main.c 文件参考

#include "ets_sys.h"
#include "osapi.h"
#include "user_interface.h"
#include "driver/uart.h"
#include "nb_bc35.h"

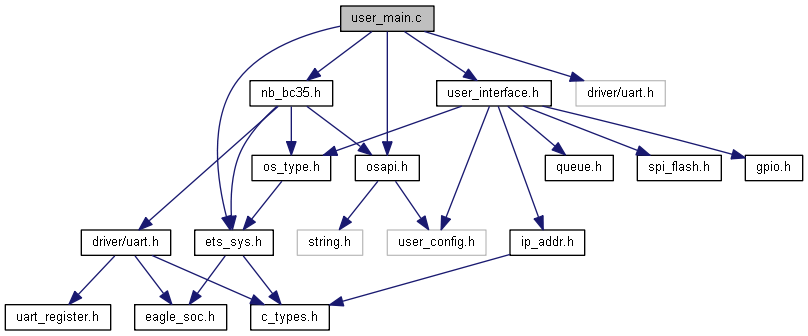

user_main.c 的引用(Include)关系图:

函数
uint32 ICACHE_FLASH_ATTR	user_rf_cal_sector_set (void)
void ICACHE_FLASH_ATTR	user_rf_pre_init (void)
void ICACHE_FLASH_ATTR	system_init_done (void)
void ICACHE_FLASH_ATTR	user_init (void)

函数说明

uint32 ICACHE_FLASH_ATTR user_rf_cal_sector_set

(

void

)

{
    enum flash_size_map size_map = system_get_flash_size_map();
    uint32 rf_cal_sec = 0;

    switch (size_map) {
        case FLASH_SIZE_4M_MAP_256_256:
            rf_cal_sec = 128 - 5;
            break;

        case FLASH_SIZE_8M_MAP_512_512:
            rf_cal_sec = 256 - 5;
            break;

        case FLASH_SIZE_16M_MAP_512_512:
        case FLASH_SIZE_16M_MAP_1024_1024:
            rf_cal_sec = 512 - 5;
            break;

        case FLASH_SIZE_32M_MAP_512_512:
        case FLASH_SIZE_32M_MAP_1024_1024:
            rf_cal_sec = 1024 - 5;
            break;

        default:
            rf_cal_sec = 0;
            break;
    }

    return rf_cal_sec;
}

函数调用图:

void ICACHE_FLASH_ATTR user_rf_pre_init

(

void

)

{
}

void ICACHE_FLASH_ATTR system_init_done

(

void

)

{
    /****  设置dhcp  ****/
    wifi_softap_dhcps_stop();
    struct dhcps_lease dhcp_lease;
    const char* start_ip = "192.168.4.10";
    const char* end_ip = "192.168.4.30";
    dhcp_lease.start_ip.addr = ipaddr_addr(start_ip);
    dhcp_lease.end_ip.addr = ipaddr_addr(end_ip);
    wifi_softap_set_dhcps_lease(&dhcp_lease);
    wifi_softap_dhcps_start();

    tcp_server_init(8080);

    NB_Init();

}

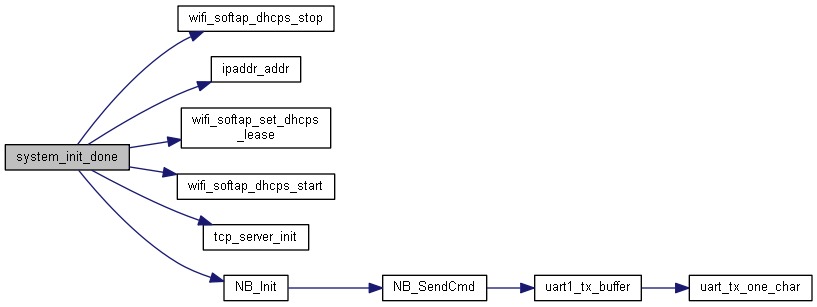

函数调用图:

这是这个函数的调用关系图:

void ICACHE_FLASH_ATTR user_init

(

void

)

{

    system_uart_de_swap();
    UART_SetPrintPort(0);

    /*******************************************************
     *
     * 注意：为了配合NB模组，当前8266用的是！！9600！！的波特率
     *
     ******************************************************/
    uart_init(BIT_RATE_9600, BIT_RATE_9600);

    //----- wifi test -----------
    struct softap_config ap;
    wifi_set_opmode(SOFTAP_MODE);
    os_memset(ap.ssid, 0, 32);
    os_memset(ap.password, 0, 64);
    os_memcpy(ap.ssid, "Centre",6);
    os_memcpy(ap.password, "12345678", 8);
    ap.authmode = AUTH_WPA_PSK;
    ap.ssid_len = 0;
    ap.max_connection = 4;
    wifi_softap_set_config(&ap);

    // 后续配置须系统初始化完成后才能进行
    system_init_done_cb(system_init_done);

}

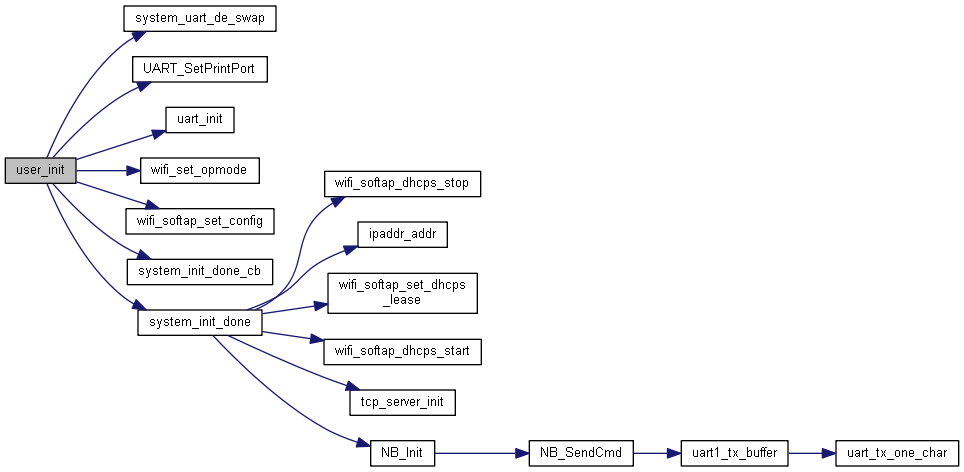

函数调用图:
