user_wifi.c 文件参考

#include "driver/uart.h"
#include "ets_sys.h"
#include "osapi.h"
#include "user_interface.h"
#include "http_client.h"
#include "user_config.h"

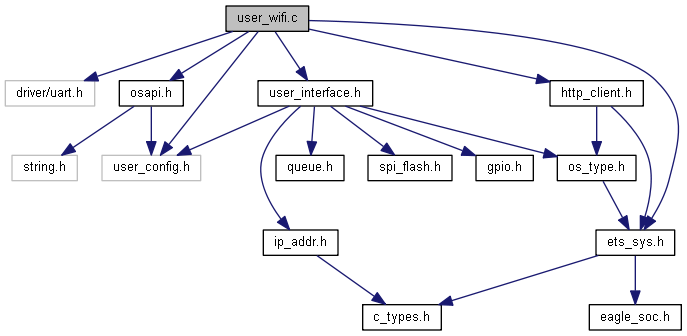

user_wifi.c 的引用(Include)关系图:

函数
void ICACHE_FLASH_ATTR	user_set_station_config (u8 *ssid, u8 *password)
void ICACHE_FLASH_ATTR	wifi_handle_event_cb (System_Event_t *evt)
void ICACHE_FLASH_ATTR	user_wifi_init (void)

函数说明

void ICACHE_FLASH_ATTR user_set_station_config	(	u8 *	ssid,
		u8 *	password
	)

                                                {
    struct station_config stationConf;
    stationConf.bssid_set = 0;      //need  not check   MAC address of  AP
    os_memcpy(&stationConf.ssid, ssid, 32);
    os_memcpy(&stationConf.password, password, 64);
    wifi_station_set_config(&stationConf);
}

函数调用图:

这是这个函数的调用关系图:

void ICACHE_FLASH_ATTR wifi_handle_event_cb

(

System_Event_t *

evt

)

                                          {
    os_printf("event %x\n", evt->event);

    switch (evt->event) {
    case EVENT_STAMODE_CONNECTED:
        os_printf("connect to ssid %s, channel %d\n",
                evt->event_info.connected.ssid,
                evt->event_info.connected.channel);
        break;
    case EVENT_STAMODE_DISCONNECTED:
        os_printf("disconnect from ssid %s, reason %d\n",
                evt->event_info.disconnected.ssid,
                evt->event_info.disconnected.reason);
        break;
    case EVENT_STAMODE_AUTHMODE_CHANGE:
        os_printf("mode: %d -> %d\n", evt->event_info.auth_change.old_mode,
                evt->event_info.auth_change.new_mode);
        break;
    case EVENT_STAMODE_GOT_IP:
        os_printf("ip:" IPSTR ",mask:" IPSTR ",gw:" IPSTR,
                IP2STR(&evt->event_info.got_ip.ip),
                IP2STR(&evt->event_info.got_ip.mask),
                IP2STR(&evt->event_info.got_ip.gw));
        os_printf("\n");
        break;
    case EVENT_SOFTAPMODE_STACONNECTED:
        os_printf("station: " MACSTR "join, AID = %d\n",
                MAC2STR(evt->event_info.sta_connected.mac),
                evt->event_info.sta_connected.aid);
        break;
    case EVENT_SOFTAPMODE_STADISCONNECTED:
        os_printf("station: " MACSTR "leave, AID = %d\n",
                MAC2STR(evt->event_info.sta_disconnected.mac),
                evt->event_info.sta_disconnected.aid);
        break;
    default:
        break;
    }
}

这是这个函数的调用关系图:

void ICACHE_FLASH_ATTR user_wifi_init

(

void

)

                     {
    wifi_set_opmode(STATION_MODE);
    user_set_station_config(WIFI_SSID, WIFI_PASSWORD);
    wifi_set_event_handler_cb(wifi_handle_event_cb);
}

函数调用图:
