#include "uart_register.h"
#include "eagle_soc.h"
#include "c_types.h"

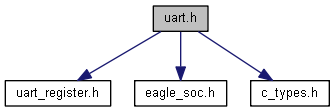

include/driver/uart.h 的引用(Include)关系图:

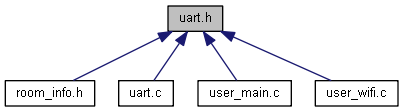

此图展示该文件直接或间接的被哪些文件引用了:

结构体
struct	RcvMsgBuff

struct	TrxMsgBuff

struct	UartDevice

struct	UartBuffer

struct	UartRxBuff

宏定义
#define	UART_TX_BUFFER_SIZE 256

#define	UART_RX_BUFFER_SIZE 256

#define	UART_BUFF_EN 1

#define	UART_SELFTEST 1

#define	UART_HW_RTS 0

#define	UART_HW_CTS 0

#define	UART0 0

#define	UART1 1

#define	UART_FIFO_LEN 128

#define	UART_TX_EMPTY_THRESH_VAL 0x10

#define	FUNC_UART0_CTS 4

#define	FUNC_U0CTS 4

#define	FUNC_U1TXD_BK 2

#define	UART_LINE_INV_MASK (0x3f<<19)

枚举
enum	UartBitsNum4Char { FIVE_BITS = 0x0, SIX_BITS = 0x1, SEVEN_BITS = 0x2, EIGHT_BITS = 0x3, FIVE_BITS = 0x0, SIX_BITS = 0x1, SEVEN_BITS = 0x2, EIGHT_BITS = 0x3 }

enum	UartStopBitsNum { ONE_STOP_BIT = 0x1, ONE_HALF_STOP_BIT = 0x2, TWO_STOP_BIT = 0x3, ONE_STOP_BIT = 0x1, ONE_HALF_STOP_BIT = 0x2, TWO_STOP_BIT = 0x3 }

enum	UartParityMode { NONE_BITS = 0x2, ODD_BITS = 1, EVEN_BITS = 0, NONE_BITS = 0x2, ODD_BITS = 1, EVEN_BITS = 0 }

enum	UartExistParity { STICK_PARITY_DIS = 0, STICK_PARITY_EN = 1, STICK_PARITY_DIS = 0, STICK_PARITY_EN = 1 }

enum	UART_LineLevelInverse { UART_None_Inverse = 0x0, UART_Rxd_Inverse = UART_RXD_INV, UART_CTS_Inverse = UART_CTS_INV, UART_Txd_Inverse = UART_TXD_INV, UART_RTS_Inverse = UART_RTS_INV, UART_None_Inverse = 0x0, UART_Rxd_Inverse = UART_RXD_INV, UART_CTS_Inverse = UART_CTS_INV, UART_Txd_Inverse = UART_TXD_INV, UART_RTS_Inverse = UART_RTS_INV }

enum	UartBautRate { BIT_RATE_300 = 300, BIT_RATE_600 = 600, BIT_RATE_1200 = 1200, BIT_RATE_2400 = 2400, BIT_RATE_4800 = 4800, BIT_RATE_9600 = 9600, BIT_RATE_19200 = 19200, BIT_RATE_38400 = 38400, BIT_RATE_57600 = 57600, BIT_RATE_74880 = 74880, BIT_RATE_115200 = 115200, BIT_RATE_230400 = 230400, BIT_RATE_460800 = 460800, BIT_RATE_921600 = 921600, BIT_RATE_1843200 = 1843200, BIT_RATE_3686400 = 3686400, BIT_RATE_300 = 300, BIT_RATE_600 = 600, BIT_RATE_1200 = 1200, BIT_RATE_2400 = 2400, BIT_RATE_4800 = 4800, BIT_RATE_9600 = 9600, BIT_RATE_19200 = 19200, BIT_RATE_38400 = 38400, BIT_RATE_57600 = 57600, BIT_RATE_74880 = 74880, BIT_RATE_115200 = 115200, BIT_RATE_230400 = 230400, BIT_RATE_460800 = 460800, BIT_RATE_921600 = 921600, BIT_RATE_1843200 = 1843200, BIT_RATE_3686400 = 3686400 }

enum	UartFlowCtrl { NONE_CTRL, HARDWARE_CTRL, XON_XOFF_CTRL, NONE_CTRL, HARDWARE_CTRL, XON_XOFF_CTRL }

enum	UART_HwFlowCtrl { USART_HardwareFlowControl_None = 0x0, USART_HardwareFlowControl_RTS = 0x1, USART_HardwareFlowControl_CTS = 0x2, USART_HardwareFlowControl_CTS_RTS = 0x3, USART_HardwareFlowControl_None = 0x0, USART_HardwareFlowControl_RTS = 0x1, USART_HardwareFlowControl_CTS = 0x2, USART_HardwareFlowControl_CTS_RTS = 0x3 }

enum	RcvMsgBuffState { EMPTY, UNDER_WRITE, WRITE_OVER, EMPTY, UNDER_WRITE, WRITE_OVER }

enum	RcvMsgState { BAUD_RATE_DET, WAIT_SYNC_FRM, SRCH_MSG_HEAD, RCV_MSG_BODY, RCV_ESC_CHAR, BAUD_RATE_DET, WAIT_SYNC_FRM, SRCH_MSG_HEAD, RCV_MSG_BODY, RCV_ESC_CHAR }

enum	TCPState { RUN = 0, BLOCK = 1, RUN = 0, BLOCK = 1 }

函数
void	uart_init (UartBautRate uart0_br, UartBautRate uart1_br)

void	uart0_sendStr (const char *str)

STATUS	uart_tx_one_char (uint8 uart, uint8 TxChar)

STATUS	uart_tx_one_char_no_wait (uint8 uart, uint8 TxChar)

void	uart1_sendStr_no_wait (const char *str)

struct UartBuffer *	Uart_Buf_Init ()

LOCAL void	Uart_Buf_Cpy (struct UartBuffer pCur, char pdata, uint16 data_len)

void	uart_buf_free (struct UartBuffer *pBuff)

void	tx_buff_enq (char *pdata, uint16 data_len)

LOCAL void	tx_fifo_insert (struct UartBuffer *pTxBuff, uint8 data_len, uint8 uart_no)

void	tx_start_uart_buffer (uint8 uart_no)

uint16	rx_buff_deq (char *pdata, uint16 data_len)

void	Uart_rx_buff_enq ()

void	uart_rx_intr_enable (uint8 uart_no)

void	uart_rx_intr_disable (uint8 uart_no)

void	uart0_tx_buffer (uint8 *buf, uint16 len)

void	UART_SetWordLength (uint8 uart_no, UartBitsNum4Char len)

void	UART_SetStopBits (uint8 uart_no, UartStopBitsNum bit_num)

void	UART_SetLineInverse (uint8 uart_no, UART_LineLevelInverse inverse_mask)

void	UART_SetParity (uint8 uart_no, UartParityMode Parity_mode)

void	UART_SetBaudrate (uint8 uart_no, uint32 baud_rate)

void	UART_SetFlowCtrl (uint8 uart_no, UART_HwFlowCtrl flow_ctrl, uint8 rx_thresh)

void	UART_WaitTxFifoEmpty (uint8 uart_no, uint32 time_out_us)

void	UART_ResetFifo (uint8 uart_no)

void	UART_ClearIntrStatus (uint8 uart_no, uint32 clr_mask)

void	UART_SetIntrEna (uint8 uart_no, uint32 ena_mask)

void	UART_SetPrintPort (uint8 uart_no)

bool	UART_CheckOutputFinished (uint8 uart_no, uint32 time_out_us)

宏定义说明

#define UART_TX_BUFFER_SIZE 256

#define UART_RX_BUFFER_SIZE 256

#define UART_BUFF_EN 1

#define UART_SELFTEST 1

#define UART_HW_RTS 0

#define UART_HW_CTS 0

#define UART0 0

#define UART1 1

#define UART_FIFO_LEN 128

#define UART_TX_EMPTY_THRESH_VAL 0x10

#define FUNC_UART0_CTS 4

#define FUNC_U0CTS 4

#define FUNC_U1TXD_BK 2

#define UART_LINE_INV_MASK (0x3f<<19)

枚举类型说明

enum UartBitsNum4Char

枚举值
FIVE_BITS
SIX_BITS
SEVEN_BITS
EIGHT_BITS
FIVE_BITS
SIX_BITS
SEVEN_BITS
EIGHT_BITS

              {
     FIVE_BITS = 0x0,
     SIX_BITS = 0x1,
     SEVEN_BITS = 0x2,
     EIGHT_BITS = 0x3
 } UartBitsNum4Char;

enum UartStopBitsNum

枚举值
ONE_STOP_BIT
ONE_HALF_STOP_BIT
TWO_STOP_BIT
ONE_STOP_BIT
ONE_HALF_STOP_BIT
TWO_STOP_BIT

              {
     ONE_STOP_BIT             = 0x1,
     ONE_HALF_STOP_BIT        = 0x2,
     TWO_STOP_BIT             = 0x3
 } UartStopBitsNum;

enum UartParityMode

枚举值
NONE_BITS
ODD_BITS
EVEN_BITS
NONE_BITS
ODD_BITS
EVEN_BITS

              {
     NONE_BITS = 0x2,
     ODD_BITS   = 1,
     EVEN_BITS = 0
 } UartParityMode;

enum UartExistParity

枚举值
STICK_PARITY_DIS
STICK_PARITY_EN
STICK_PARITY_DIS
STICK_PARITY_EN

              {
     STICK_PARITY_DIS   = 0,
     STICK_PARITY_EN    = 1
 } UartExistParity;

enum UART_LineLevelInverse

枚举值
UART_None_Inverse
UART_Rxd_Inverse
UART_CTS_Inverse
UART_Txd_Inverse
UART_RTS_Inverse
UART_None_Inverse
UART_Rxd_Inverse
UART_CTS_Inverse
UART_Txd_Inverse
UART_RTS_Inverse

              {
     UART_None_Inverse = 0x0,
     UART_Rxd_Inverse = UART_RXD_INV,
     UART_CTS_Inverse = UART_CTS_INV,
     UART_Txd_Inverse = UART_TXD_INV,
     UART_RTS_Inverse = UART_RTS_INV,
 } UART_LineLevelInverse;

enum UartBautRate

枚举值
BIT_RATE_300
BIT_RATE_600
BIT_RATE_1200
BIT_RATE_2400
BIT_RATE_4800
BIT_RATE_9600
BIT_RATE_19200
BIT_RATE_38400
BIT_RATE_57600
BIT_RATE_74880
BIT_RATE_115200
BIT_RATE_230400
BIT_RATE_460800
BIT_RATE_921600
BIT_RATE_1843200
BIT_RATE_3686400
BIT_RATE_300
BIT_RATE_600
BIT_RATE_1200
BIT_RATE_2400
BIT_RATE_4800
BIT_RATE_9600
BIT_RATE_19200
BIT_RATE_38400
BIT_RATE_57600
BIT_RATE_74880
BIT_RATE_115200
BIT_RATE_230400
BIT_RATE_460800
BIT_RATE_921600
BIT_RATE_1843200
BIT_RATE_3686400

              {
     BIT_RATE_300 = 300,
     BIT_RATE_600 = 600,
     BIT_RATE_1200 = 1200,
     BIT_RATE_2400 = 2400,
     BIT_RATE_4800 = 4800,
     BIT_RATE_9600   = 9600,
     BIT_RATE_19200  = 19200,
     BIT_RATE_38400  = 38400,
     BIT_RATE_57600  = 57600,
     BIT_RATE_74880  = 74880,
     BIT_RATE_115200 = 115200,
     BIT_RATE_230400 = 230400,
     BIT_RATE_460800 = 460800,
     BIT_RATE_921600 = 921600,
     BIT_RATE_1843200 = 1843200,
     BIT_RATE_3686400 = 3686400,
 } UartBautRate;

enum UartFlowCtrl

枚举值
NONE_CTRL
HARDWARE_CTRL
XON_XOFF_CTRL
NONE_CTRL
HARDWARE_CTRL
XON_XOFF_CTRL

              {
     NONE_CTRL,
     HARDWARE_CTRL,
     XON_XOFF_CTRL
 } UartFlowCtrl;

enum UART_HwFlowCtrl

枚举值
USART_HardwareFlowControl_None
USART_HardwareFlowControl_RTS
USART_HardwareFlowControl_CTS
USART_HardwareFlowControl_CTS_RTS
USART_HardwareFlowControl_None
USART_HardwareFlowControl_RTS
USART_HardwareFlowControl_CTS
USART_HardwareFlowControl_CTS_RTS

              {
     USART_HardwareFlowControl_None = 0x0,
     USART_HardwareFlowControl_RTS = 0x1,
     USART_HardwareFlowControl_CTS = 0x2,
     USART_HardwareFlowControl_CTS_RTS = 0x3
 } UART_HwFlowCtrl;

enum RcvMsgBuffState

枚举值
EMPTY
UNDER_WRITE
WRITE_OVER
EMPTY
UNDER_WRITE
WRITE_OVER

              {
     EMPTY,
     UNDER_WRITE,
     WRITE_OVER
 } RcvMsgBuffState;

enum RcvMsgState

枚举值
BAUD_RATE_DET
WAIT_SYNC_FRM
SRCH_MSG_HEAD
RCV_MSG_BODY
RCV_ESC_CHAR
BAUD_RATE_DET
WAIT_SYNC_FRM
SRCH_MSG_HEAD
RCV_MSG_BODY
RCV_ESC_CHAR

              {
     BAUD_RATE_DET,
     WAIT_SYNC_FRM,
     SRCH_MSG_HEAD,
     RCV_MSG_BODY,
     RCV_ESC_CHAR,
 } RcvMsgState;

enum TCPState

枚举值
RUN
BLOCK
RUN
BLOCK

              {
     RUN = 0,
     BLOCK = 1,
 } TCPState;

函数说明

void uart_init	(	UartBautRate	uart0_br,
		UartBautRate	uart1_br
	)

 {
     /*this is a example to process uart data from task,please change the priority to fit your application task if exists*/
     system_os_task(uart_recvTask, uart_recvTaskPrio, uart_recvTaskQueue, uart_recvTaskQueueLen);  //demo with a task to process the uart data

     UartDev.baut_rate = uart0_br;
     uart_config(UART0);
     UartDev.baut_rate = uart1_br;
     uart_config(UART1);
     ETS_UART_INTR_ENABLE();

     #if UART_BUFF_EN
     pTxBuffer = Uart_Buf_Init(UART_TX_BUFFER_SIZE);
     pRxBuffer = Uart_Buf_Init(UART_RX_BUFFER_SIZE);
     #endif


     /*option 1: use default print, output from uart0 , will wait some time if fifo is full */
     //do nothing...

     /*option 2: output from uart1,uart1 output will not wait , just for output debug info */
     /*os_printf output uart data via uart1(GPIO2)*/
     //os_install_putc1((void *)uart1_write_char);    //use this one to output debug information via uart1 //

     /*option 3: output from uart0 will skip current byte if fifo is full now... */
     /*see uart0_write_char_no_wait:you can output via a buffer or output directly */
     /*os_printf output uart data via uart0 or uart buffer*/
     //os_install_putc1((void *)uart0_write_char_no_wait);  //use this to print via uart0

     #if UART_SELFTEST&UART_BUFF_EN
     os_timer_disarm(&buff_timer_t);
     os_timer_setfn(&buff_timer_t, uart_test_rx , NULL);   //a demo to process the data in uart rx buffer
     os_timer_arm(&buff_timer_t,10,1);
     #endif
 }

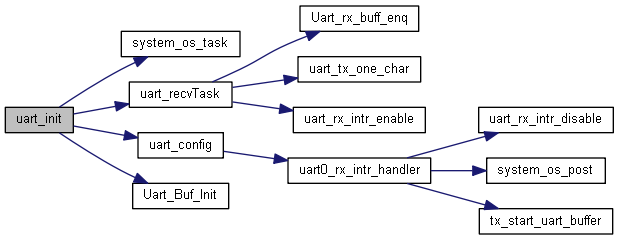

函数调用图:

这是这个函数的调用关系图:

void uart0_sendStr ( const char * str )

 {
     while(*str){
         uart_tx_one_char(UART0, *str++);
     }
 }

函数调用图:

STATUS uart_tx_one_char	(	uint8	uart,
		uint8	TxChar
	)

 {
     while (true){
         uint32 fifo_cnt = READ_PERI_REG(UART_STATUS(uart)) & (UART_TXFIFO_CNT<<UART_TXFIFO_CNT_S);
         if ((fifo_cnt >> UART_TXFIFO_CNT_S & UART_TXFIFO_CNT) < 126) {
             break;
         }
     }
     WRITE_PERI_REG(UART_FIFO(uart) , TxChar);
     return OK;
 }

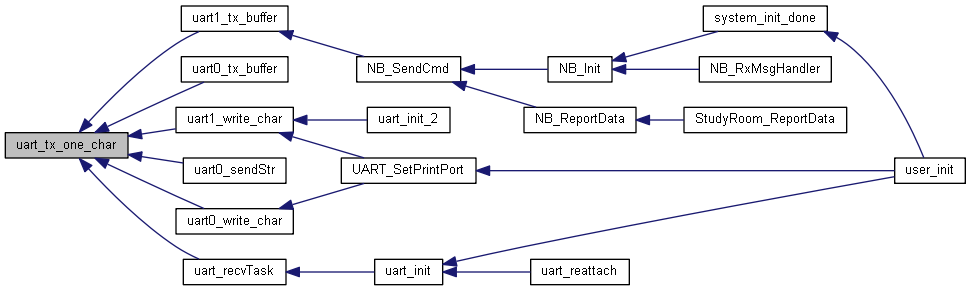

这是这个函数的调用关系图:

STATUS uart_tx_one_char_no_wait	(	uint8	uart,
		uint8	TxChar
	)

 {
     uint8 fifo_cnt = (( READ_PERI_REG(UART_STATUS(uart))>>UART_TXFIFO_CNT_S)& UART_TXFIFO_CNT);
     if (fifo_cnt < 126) {
         WRITE_PERI_REG(UART_FIFO(uart) , TxChar);
     }
     return OK;
 }

这是这个函数的调用关系图:

void uart1_sendStr_no_wait ( const char * str )

 {
     while(*str){
         uart_tx_one_char_no_wait(UART1, *str++);
     }
 }

函数调用图:

struct UartBuffer* Uart_Buf_Init ( )

LOCAL void Uart_Buf_Cpy	(	struct UartBuffer *	pCur,
		char *	pdata,
		uint16	data_len
	)

void uart_buf_free ( struct UartBuffer * pBuff )

void tx_buff_enq	(	char *	pdata,
		uint16	data_len
	)

LOCAL void tx_fifo_insert	(	struct UartBuffer *	pTxBuff,
		uint8	data_len,
		uint8	uart_no
	)

void tx_start_uart_buffer ( uint8 uart_no )

uint16 rx_buff_deq	(	char *	pdata,
		uint16	data_len
	)

void Uart_rx_buff_enq ( )

void uart_rx_intr_enable ( uint8 uart_no )

 {
 #if 1
     SET_PERI_REG_MASK(UART_INT_ENA(uart_no), UART_RXFIFO_FULL_INT_ENA|UART_RXFIFO_TOUT_INT_ENA);
 #else
     ETS_UART_INTR_ENABLE();
 #endif
 }

这是这个函数的调用关系图:

void uart_rx_intr_disable ( uint8 uart_no )

 {
 #if 1
     CLEAR_PERI_REG_MASK(UART_INT_ENA(uart_no), UART_RXFIFO_FULL_INT_ENA|UART_RXFIFO_TOUT_INT_ENA);
 #else
     ETS_UART_INTR_DISABLE();
 #endif
 }

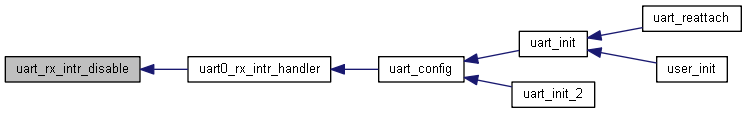

这是这个函数的调用关系图:

void uart0_tx_buffer	(	uint8 *	buf,
		uint16	len
	)

 {
     uint16 i;
     for (i = 0; i < len; i++)
     {
         uart_tx_one_char(UART0, buf[i]);
     }
 }

函数调用图:

void UART_SetWordLength	(	uint8	uart_no,
		UartBitsNum4Char	len
	)

 {
     SET_PERI_REG_BITS(UART_CONF0(uart_no),UART_BIT_NUM,len,UART_BIT_NUM_S);
 }

void UART_SetStopBits	(	uint8	uart_no,
		UartStopBitsNum	bit_num
	)

 {
     SET_PERI_REG_BITS(UART_CONF0(uart_no),UART_STOP_BIT_NUM,bit_num,UART_STOP_BIT_NUM_S);
 }

void UART_SetLineInverse	(	uint8	uart_no,
		UART_LineLevelInverse	inverse_mask
	)

 {
     CLEAR_PERI_REG_MASK(UART_CONF0(uart_no), UART_LINE_INV_MASK);
     SET_PERI_REG_MASK(UART_CONF0(uart_no), inverse_mask);
 }

void UART_SetParity	(	uint8	uart_no,
		UartParityMode	Parity_mode
	)

 {
     CLEAR_PERI_REG_MASK(UART_CONF0(uart_no), UART_PARITY |UART_PARITY_EN);
     if(Parity_mode==NONE_BITS){
     }else{
         SET_PERI_REG_MASK(UART_CONF0(uart_no), Parity_mode|UART_PARITY_EN);
     }
 }

void UART_SetBaudrate	(	uint8	uart_no,
		uint32	baud_rate
	)

 {
     uart_div_modify(uart_no, UART_CLK_FREQ /baud_rate);
 }

void UART_SetFlowCtrl	(	uint8	uart_no,
		UART_HwFlowCtrl	flow_ctrl,
		uint8	rx_thresh
	)

 {
     if(flow_ctrl&USART_HardwareFlowControl_RTS){
         PIN_FUNC_SELECT(PERIPHS_IO_MUX_MTDO_U, FUNC_U0RTS);
         SET_PERI_REG_BITS(UART_CONF1(uart_no),UART_RX_FLOW_THRHD,rx_thresh,UART_RX_FLOW_THRHD_S);
         SET_PERI_REG_MASK(UART_CONF1(uart_no), UART_RX_FLOW_EN);
     }else{
         CLEAR_PERI_REG_MASK(UART_CONF1(uart_no), UART_RX_FLOW_EN);
     }
     if(flow_ctrl&USART_HardwareFlowControl_CTS){
         PIN_FUNC_SELECT(PERIPHS_IO_MUX_MTCK_U, FUNC_UART0_CTS);
         SET_PERI_REG_MASK(UART_CONF0(uart_no), UART_TX_FLOW_EN);
     }else{
         CLEAR_PERI_REG_MASK(UART_CONF0(uart_no), UART_TX_FLOW_EN);
     }
 }

void UART_WaitTxFifoEmpty	(	uint8	uart_no,
		uint32	time_out_us
	)

 {
     uint32 t_s = system_get_time();
     while (READ_PERI_REG(UART_STATUS(uart_no)) & (UART_TXFIFO_CNT << UART_TXFIFO_CNT_S)){

         if(( system_get_time() - t_s )> time_out_us){
             break;
         }
     WRITE_PERI_REG(0X60000914, 0X73);//WTD

     }
 }

函数调用图:

void UART_ResetFifo ( uint8 uart_no )

 {
     SET_PERI_REG_MASK(UART_CONF0(uart_no), UART_RXFIFO_RST | UART_TXFIFO_RST);
     CLEAR_PERI_REG_MASK(UART_CONF0(uart_no), UART_RXFIFO_RST | UART_TXFIFO_RST);
 }

void UART_ClearIntrStatus	(	uint8	uart_no,
		uint32	clr_mask
	)

 {
     WRITE_PERI_REG(UART_INT_CLR(uart_no), clr_mask);
 }

void UART_SetIntrEna	(	uint8	uart_no,
		uint32	ena_mask
	)

 {
     SET_PERI_REG_MASK(UART_INT_ENA(uart_no), ena_mask);
 }

void UART_SetPrintPort ( uint8 uart_no )

 {
     if(uart_no==1){
         os_install_putc1(uart1_write_char);
     }else{
         /*option 1: do not wait if uart fifo is full,drop current character*/
         os_install_putc1(uart0_write_char_no_wait);
     /*option 2: wait for a while if uart fifo is full*/
     os_install_putc1(uart0_write_char);
     }
 }

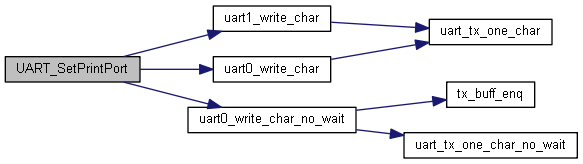

函数调用图:

bool UART_CheckOutputFinished	(	uint8	uart_no,
		uint32	time_out_us
	)

 {
     uint32 t_start = system_get_time();
     uint8 tx_fifo_len;
     uint32 tx_buff_len;
     while(1){
         tx_fifo_len =( (READ_PERI_REG(UART_STATUS(uart_no))>>UART_TXFIFO_CNT_S)&UART_TXFIFO_CNT);
         if(pTxBuffer){
             tx_buff_len = ((pTxBuffer->UartBuffSize)-(pTxBuffer->Space));
         }else{
             tx_buff_len = 0;
         }

         if( tx_fifo_len==0 && tx_buff_len==0){
             return TRUE;
         }
         if( system_get_time() - t_start > time_out_us){
             return FALSE;
         }
     WRITE_PERI_REG(0X60000914, 0X73);//WTD
     }
 }

函数调用图:

结构体

宏定义

枚举

函数

宏定义说明

枚举类型说明

函数说明
